TSTIX series

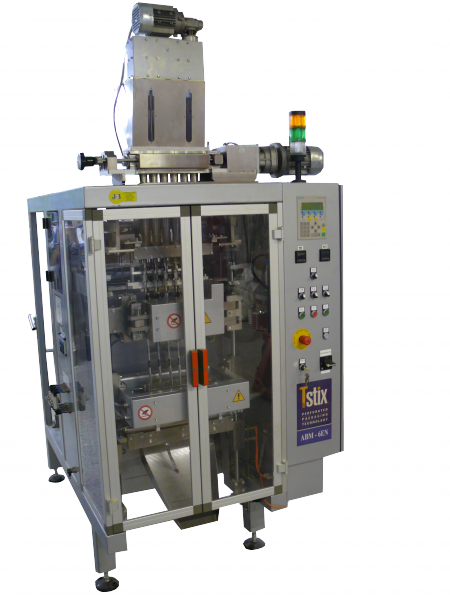

Packaging machine ABM EN Tstix series are high-performance, reliable, fully automated, multi-tube vertical packing machines suitable for packaging of loose tea into flat stickpacks. These packaging machines are equipped with a special gear dosing equipment for loose tea dispensing. The bags are made from an endless special heat sealable perforated foil. Foil is cut into narrow strips according to the number of tubes and then passes through forming part and is sealed longitudinally. Created hose is then closed by cross jaws, the packaged goods are filled through created hose and when the bag is pulled for the set length, the bag is sealed transversely and cut off by in-built blade. Made bags fall onto an exit conveyor and are transported for further handling. All parts coming into contact with the packaged goods are made from food safe stainless steel AISI 304 (on request also from AISI 316L). Packaging machine can be combined with other optional accessories.

Maximal foil width: up to 1000 mm
Bag measurements: standard for TStix: width 19,5 mm, adjustable length 40-250 mm
Number of tubes: 1-25
Maximal output: 70 cycles/min. (depending on packed goods), up to 1750 bags/min.
Bag type: stickpacks boiling – 3 sides sealed
Control systems: SIEMENS, ALLEN BRADLEY
Drive: electro-pneumatic
Weight: 1050 kg (X), 1250 kg (XL), 1500 kg (XXL)
Cross seal: standard for Tstix: diamond design
Type of packed goods: loose tea
Technical drawing: TStix-technical drawing.jpg
Note: measurements may vary
Product sheet: TStix_FINAL.pdf
Recommended foil type: special perforated foil ALU/PE from WISTA/AMCOR/ ALCAN company – licence is required

ADVANTAGES
  • high performance, reliable, variable, flexible, fully automated, multi-tube vertical packaging machine
  • varnished or stainless steel sturdy frame
  • electro-pneumatic drive
  • Siemens/Allen Bradley/Telemecanique control systems provide fast and easy operation
  • possibility to store parameters for different products or packaging features
  • bag length settings mechanically in mm
  • easy conversion to other formats (more tubes, different bag width)
  • AISI 304 stainless steel finish (or AISI 316L upon customer´s request) meeting hygiene food contact requirements
  • safety focus – in built door safety features, central emergency stop button, main switch
  • sealing – heat (standard), impulse
  • cross seal raster types - linear grooving, diamond design
  • end of foil sensor, easy and quick fastening of new foil reel, automatic foil centering by sensors
  • special perforated ALU/PE foil from WISTA/AMCOR/ALCAN company – licence requirement
  • imple control and operation
  • attractive and compact design
  • minimal maintenance requirements
